一、产品概述:
标日牌SG型管道泵主要适用于高层建筑,园林喷灌,管道增压,冷热水循环,易燃易爆液体与腐蚀性液体输送及各种锅炉,供水、暖通、化工、石油管道设备配套。
(1) SG普通型适用于高层建筑增压送水,园林喷灌、冷却塔上水、远距离输水、制冷冲洗、浴室等冷暖流水循环加压。使用温度80℃以下。
(2) SGR热水型适用于暖房、锅炉等行业的高温热水增压循环。使用温度140℃以下。
(3) SGP耐腐型是输送腐蚀介质的不锈钢管道泵,适用于食品、制药、酿造、化工等行业的工艺流程中使用。使用温度100℃以下。
(4) SGB防爆型适用于石油、化学液体无腐蚀性易燃易爆液体输送。使用温度80℃以下。
(5) SGPB防腐防爆型适用于化工、化学液体等带腐蚀性易燃易爆液体输送。使用温度140℃以下。
二、上海标日泵阀制造有限公司SG型管道泵(增压泵)性能参数:
型号 |
口径 (mm) |
流量 (m3/h) |
扬程 (m) |
电机功率 (Kw) |
电压 (V) |
转速 (r/min) |
15SG0.6-5 |
15 |
0.6 |
5 |
0.04 |
220 |
2800 |
15SG1.8-10 |
15 |
1.8 |
10 |
0.12 |
220 |
2800 |
20SG2-8 |
20 |
2 |
8 |
0.12 |
220 |
2800 |
20SG3-14 |
20 |
3 |
14 |
0.25 |
220 |
2800 |
20SG3-30 |
20 |
3 |
30 |
0.75 |
220 |
2800 |
25SG2.5-15 |
25 |
2.5 |
15 |
0.25 |
220 |
2800 |
25SG4-20 |
25 |
4 |
20 |
0.75 |
220 |
2800 |
25SG3-30 |
25 |
3 |
30 |
0.75 |
220 |
2800 |
32SG5-20 |
32 |
5 |
20 |
0.75 |
220 |
2800 |
40SG5-8 |
40 |
5 |
8 |
0.25 |
220 |
2800 |
40SG6-20 |
40 |
6 |
20 |
0.75 |
220 |
2800 |
50SG10-7.5 |
50 |
10 |
7.5 |
0.75 |
220 |
2800 |
50SG10-15 |
50 |
10 |
15 |
0.75 |
220 |
2800 |
25SG4-20 |
25 |
4 |
20 |
0.75 |
380 |
2800 |
25SG3-30 |
25 |
3 |
30 |
0.75 |
380 |
2800 |
25SG6.5-30 |
25 |
6.5 |
30 |
1.5 |
380 |
2800 |
25SG10-50 |
25 |
10 |
50 |
4 |
380 |
2800 |
32SG5-20 |
32 |
5 |
20 |
0.75 |
380 |
2800 |
32SG8-30 |
32 |
8 |
30 |
1.5 |
380 |
2800 |
32SG15-40 |
32 |
15 |
40 |
4 |
380 |
2800 |
32SG12-50 |
32 |
12 |
50 |
4 |
380 |
2800 |
32SG14-80 |
32 |
14 |
80 |
7.5 |
380 |
2800 |
40SG6-20 |
40 |
6 |
20 |
0.75 |
380 |
2800 |
40SG9-30 |
40 |
9 |
30 |
1.5 |
380 |
2800 |
40SG18-40 |
40 |
18 |
40 |
4 |
380 |
2800 |
40SG15-50 |
40 |
15 |
50 |
4 |
380 |
2800 |
40SG18-65 |
40 |
18 |
65 |
7.5 |
380 |
2800 |
40SG15-80 |
40 |
15 |
80 |
7.5 |
380 |
2800 |
50SG10-7.5 |
50 |
10 |
7.5 |
0.75 |
380 |
2800 |
50SG10-15 |
50 |
10 |
15 |
0.75 |
380 |
2800 |
50SG12-25 |
50 |
12 |
25 |
1.5 |
380 |
2800 |
50SG15-30 |
50 |
15 |
30 |
2.2 |
380 |
2800 |
50SG18-40 |
50 |
18 |
40 |
4 |
380 |
2800 |
50SG16-50 |
50 |
16 |
50 |
4 |
380 |
2800 |
50SG20-65 |
50 |
20 |
65 |
7.5 |
380 |
2800 |
50SG25-80 |
50 |
25 |
80 |
15 |
380 |
2800 |
50SG30-100 |
50 |
30 |
100 |
22 |
380 |
2800 |
65SG30-15 |
65 |
30 |
15 |
2.2 |
380 |
2800 |
65SG30-27 |
65 |
30 |
27 |
4 |
380 |
2800 |
65SG40-40 |
65 |
40 |
40 |
7.5 |
380 |
2800 |
65SG30-50 |
65 |
30 |
50 |
7.5 |
380 |
2800 |
65SG50-65 |
65 |
50 |
65 |
15 |
380 |
2800 |
65SG40-80 |
65 |
40 |
80 |
18.5 |
380 |
2800 |
65SG45-100 |
64 |
45 |
100 |
22 |
380 |
2800 |
80SG35-20 |
80 |
35 |
20 |
4 |
380 |
2800 |
80SG50-30 |
80 |
50 |
30 |
7.5 |
380 |
2800 |
80SG70-40 |
80 |
70 |
40 |
15 |
380 |
2800 |
80SG60-50 |
80 |
60 |
50 |
15 |
380 |
2800 |
80SG80-65 |
80 |
80 |
65 |
22 |
380 |
2800 |
80SG70-80 |
80 |
70 |
80 |
22 |
380 |
2800 |
80SG55-100 |
80 |
55 |
100 |
30 |
380 |
2800 |
100SG40-18 |
100 |
40 |
18 |
4 |
380 |
2800 |
100SG50-30 |
100 |
50 |
30 |
7.5 |
380 |
2800 |
100SG70-40 |
100 |
70 |
40 |
15 |
380 |
2800 |
100SG60-50 |
100 |
60 |
50 |
15 |
380 |
2800 |
100SG80-65 |
100 |
80 |
65 |
22 |
380 |
2800 |
100SG75-78 |
100 |
75 |
78 |
22 |
380 |
2800 |
100SG100-60 |
100 |
100 |
60 |
30 |
380 |
2800 |
100SG55-100 |
100 |
55 |
100 |
30 |
380 |
2800 |
125SG80-18 |
125 |
80 |
18 |
7.5 |
380 |
1450 |
150SG100-15 |
150 |
100 |
15 |
7.5 |
380 |
1450 |
150SG140-26 |
150 |
140 |
26 |
18.5 |
380 |
1450 |
150SG160-40 |
150 |
160 |
40 |
30 |
380 |
2800 |
150SG200-50 |
150 |
200 |
50 |
37 |
380 |
2800 |
150SG220-65 |
150 |
220 |
65 |
55.5 |
380 |
2800 |
150SG170-180 |
150 |
170 |
180 |
55.5 |
380 |
2800 |
200SG200-20 |
200 |
200 |
20 |
18.5 |
380 |
1450 |
200SG200-35 |
200 |
200 |
35 |
30 |
380 |
2800 |
200SG200-44 |
200 |
200 |
44 |
37 |
380 |
2800 |
200SG240-60 |
200 |
240 |
60 |
55.5 |
380 |
2800 |
200SG200-75 |
200 |
200 |
75 |
55.5 |
380 |
2800 |
250SG380-22 |
250 |
380 |
22 |
37 |
380 |
1450 |
250SG500-30 |
250 |
500 |
30 |
55 |
380 |
1450 |
300SG400-20 |
250 |
500 |
30 |
37 |
380 |
1450 |
300SG500-30 |
300 |
500 |
30 |
55 |
380 |
1450 |
350SG800-20 |
350 |
800 |
20 |
55 |
380 |
1450 |
400SG1000-18 |
400 |
1000 |
18 |
55 |
380 |
1450 |
500SG1200-15 |
500 |
1200 |
15 |
55 |
380 |
1450 |
500SG800-20 |
500 |
800 |
20 |
55 |
380 |
1450 |

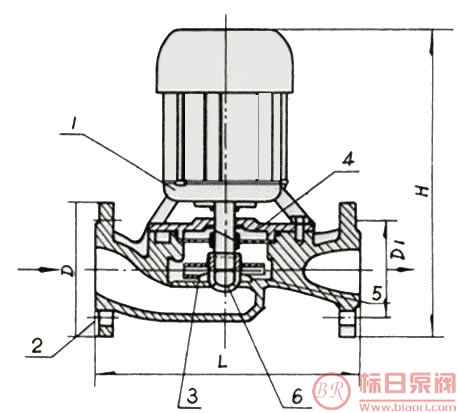

三、标日牌SG型管道泵(增压泵)外形安装尺寸图:

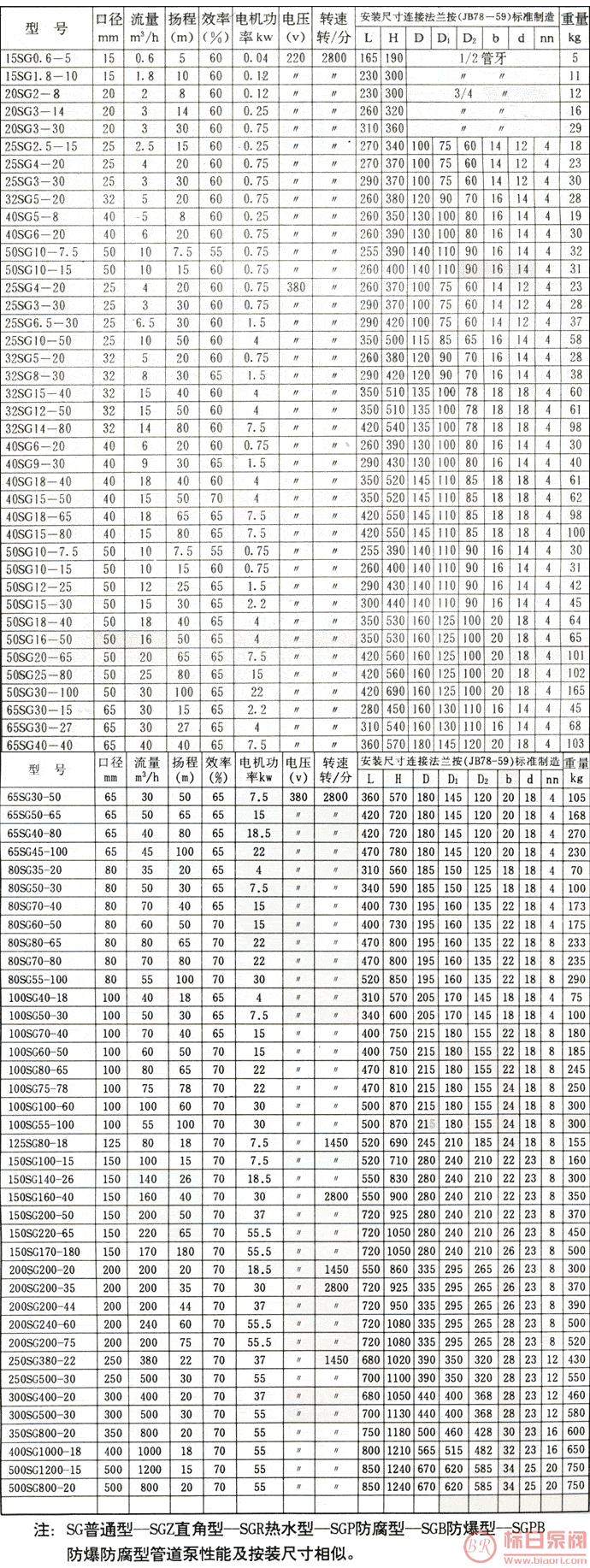

四、标日牌SG型管道泵(增压泵)外形安装尺寸表:
